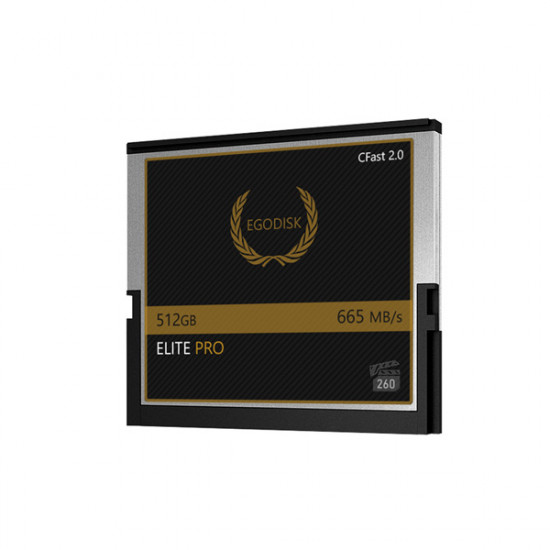

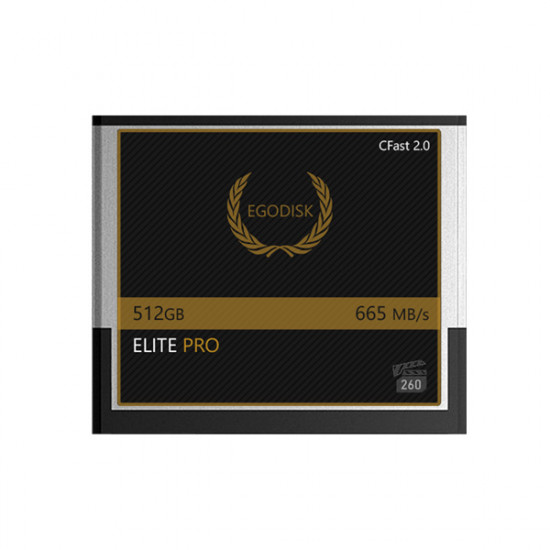

Designed Specifically for Blackmagic Cameras
| GENERAL | |
| CAPACITY | 512GB |
| FORM FACTOR | CFAST 2.0 | VIDEO PERFORMANCE GUARANTEE-260 (VPG-260) |
| DIMENSIONS | 1.69 × 1.43 X 0.13 INCH (42.8 × 36.4 × 3.3 MM) |
| WEIGHT | ~ 0.35 OZ | ~ 10.0 G |
| PERFORMANCE | |
| MAX READ SPEED | UP TO 665 MB/S |
| MAX WRITE SPEED | UP TO 550 MB/S |
| RELIABILITY | |
| MTBF | 2,000,000 hours |
| DATA RELIABILITY | BUILT-IN EDC | ECC FUNCTION |
| DATA RETENTION | 10 YEARS AT 25° |
| ENVIRONMENTAL CERTIFICATION | ROHS, CE, FCC |
| TECHNICAL | |
| OPERATING VOLTAGE | DC 3.3V (±5%) |
| INTERFACE | SATA 3.1 COMPLIANT |
| FEATURES | SMART | BUILT-IN EDC | ECC FUNCTION | TEMPERATURE SENSOR | TRIM | EMS PROTECTION | BUILT-IN CACHE |
| ENVIRONMENTAL | |
| SHOCK RESISTANCE | 50G |
| VIBRATION RESISTANCE | 3.3G |
| OPERATING TEMPERATURE | 23 TO 168°F (-5 TO 75°C) |
| STORAGE TEMPERATURE | 13°F TO 185°F (-25°C TO 85°C) |
| OPERATING HUMIDITY | 5 % TO 95 % NON-CONDENSING |
| COMPATIBILITY | |
| NOTE FOR CANON USERS | DUE TO CANON INTERNAL MEMORY LIMITATION SOME CANON MODELS REQUIRE POWER CYCLE WHEN 512GB ELITE CF2 CARD INSERTED! |
| PRODUCT LIST | BLACKMAGIC URSA MINI 4K & 4.6K | BLACKMAGIC POCKET CINEMA CAMERA 4K | |
| WARRANTY | |
| 3 YEARS | TO RECEIVE THE FULL LIMITED WARRANTY, THE PRODUCT NEEDS TO BE REGISTERED ON EGODISK.COM |
THE FASTEST CFAST 2.0 CARD ON THE MARKET!
QUALITY CONTROL
EGODISK DEEPLY UNDERSTAND THAT QUALITY IS THE BASIC WEAPON FOR AN ENTERPRISE TO WIN. PRODUCTION IS CONDUCTED ACCORDING TO INTERNATIONAL STANDARDS. QUALITY CONTROL IS CARRIED OUT BY 80 INSPECTORS USING EQUIPMENT FROM THE US AND JAPAN. ALL RAW MATERIALS ARE INSPECTED TO MEET THE ROHS STANDARDS BEFORE THE PRODUCTION. OUR LONG-TERM, STRATEGIC, STABLE PARTNERSHIPS WITH KEY COMPONENT SUPPLIERS ENSURE PRODUCT QUALITY AND RELIABILITY. FOUR INSPECTION STAGES DURING PRODUCTION AND A FINAL PRODUCT TESTING PRIOR TO PACKING ENSURE OUR LOW DEFECTIVE.
VIBRATION TEST ON FINISHED PRODUCT PACKAGE CASES AND SALT FOG TEST ON METAL PARTS ARE CONDUCTED TO ENSURE QUALITY AND RELIABILITY. ALL PRODUCTS ARE CE, FCC CERTIFIED. THEY ARE ALSO COMPLIANT WITH THE ROHS DIRECTIVE, CPRM AND OTHERS.
TESTED UNDER EXTREME CONDITIONS
EGODISK HAS PROFESSIONAL TESTING LIBRARY, ALL THE PRODUCTS APPROVED BY QUALITY LAB WITH 600 AND PLUS TESTING HOURS WHICH CAN GUARANTEE PERFORMANCE, QUALITY, COMPATIBILITY AND RELIABILITY AND OPERATION IN HARSH TEMPERATURE CONDITIONS FROM -13°F TO 185°F / -25°C TO 85°C.
PERFORMANCE
EGODISK CFAST 2.0 MEMORY CARD DELIVERS THE PERFORMANCE NEEDED FOR BROADCAST, CINEMA, AND PHOTOGRAPHY INDUSTRIES.
EGODISK COMBINES THE SPEED, CAPACITY, AND PERFORMANCE NEEDED TO RECORD UNINTERRUPTED DCI 4K VIDEO, WHICH HAS A RESOLUTION OF 4K OR HIGHER. IT FEATURES A SATA 3.1 6 GB/S BUS, A MAXIMUM READ SPEED OF UP TO 665 MB/S, A MAXIMUM WRITE SPEED OF UP TO 550 MB/S, AND A MINIMUM WRITE SPEED OF 130 MB/S. ITS MINIMUM WRITE SPEED IS BACKED UP BY THE VIDEO PERFORMANCE GUARANTEE 260 STANDARD (VPG-260), MEANING THAT ITS MINIMUM WRITE SPEED WILL NEVER DROP BELOW 260 MB/S. THIS CARD HAS BEEN TESTED TO WORK IN TEMPERATURES OF -5 TO 160°F.
